Overview

The JK-2225 PRO CNC Multi-Layer Cutting Machine by JEKE is a state-of-the-art, fully automatic cutting system designed to enhance production efficiency and precision in the garment and textile industries. Engineered for large-scale production, the JK-2225 PRO excels in cutting multiple layers of various fabrics such as knits, woven materials, and other textiles. Its powerful cutting technology and robust system make it a reliable solution for businesses looking to streamline operations, reduce labor costs, and improve overall productivity.

Whether you’re in the business of mass garment manufacturing or need to cut complex patterns for custom fashion, this machine provides cutting-edge features that guarantee high precision, fast speeds, and minimal downtime.

Key Features and Advantages

1. Precision Multi-Layer Cutting

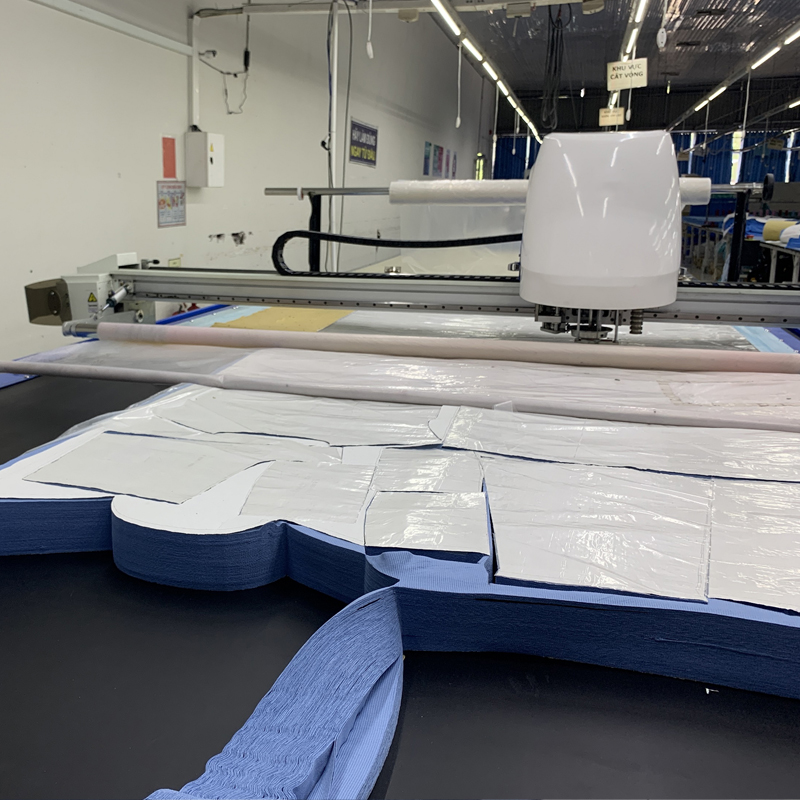

   The JK-2225 PRO is equipped with a cutting height range from 3cm to 9cm after vacuum absorption, allowing you to cut multiple layers of fabric simultaneously with precision. This feature is ideal for the garment and textile industry, where time efficiency and accuracy are paramount for mass production.
2. High-Speed Cutting Technology
   With a cutting speed of up to 60,000mm/min and a maximum blade rotation speed of 4000 rpm/min, the JK-2225 PRO is built to handle high-volume cutting requirements without compromising on precision or quality. This high-speed cutting system significantly boosts production throughput, reducing manufacturing lead times.
3. Customizable Dimensions
   The JK-2225 PRO offers a variety of customizable options to meet your production needs, including working width (Y) sizes of 1700mm, 2000mm, or 2200mm, and working length (X) of 2500mm standard or 3300mm extended length. The table width and cutting window length can also be customized, allowing businesses to tailor the machine to their exact specifications.
4. Advanced CAD & CAM Integration
   The JK-2225 PRO integrates seamlessly with CAD and CAM systems, enabling you to easily transfer cutting data via Ethernet communication or USB flash memory. It supports common file formats such as DXF and PLT, allowing for smooth integration into your existing workflow.
5. Energy-Efficient and Durable Design
   Powered by a three-phase 380V supply, the machine operates with a rated power consumption of 18kW, providing a balance of high power and energy efficiency. The robust motors, including options from TECO Taiwan and Panasonic Japan (CNC system driver), and SMC Japan (pneumatic system driver), ensure the machine delivers consistent performance with minimal maintenance requirements.
6. Precise Servo Motors and Pneumatic System
   The JK-2225 PRO is equipped with 4 sets of servo motors (X, Y, Z, T axes) with power ratings from 400W to 2KW, ensuring smooth movement and precise control across all axes. This is crucial for ensuring accuracy, especially when cutting intricate patterns or complex multi-layered fabrics. Additionally, the SMC Japan pneumatic system ensures that fabric is held securely in place during the cutting process.
7. Noise Reduction
   Operating at a noise level of < 75 dBA, the JK-2225 PRO is designed to provide a quieter work environment, making it ideal for long-term use in busy production settings.

Applications

The JK-2225 PRO is designed specifically for industries where precision fabric cutting is essential. Its key applications include:

• Garment Manufacturing: Ideal for large-scale production of apparel, including cutting multi-layered fabrics like cotton, polyester, and blended textiles.
• Technical Textiles: Suitable for cutting a variety of technical textiles used in automotive, medical, and industrial applications.
• Custom Fashion Design: Perfect for high-end fashion designers who require intricate, custom cuts in multiple layers of fabric.
• Textile Research & Development: Ideal for R&D departments in textile companies that need rapid prototyping and precise cutting for testing new fabric materials.

Detailed Specifications

Customization options are available. Specifications are subject to change without prior notice.

Benefits of the JK-2225 PRO

1. Improved Productivity
   The high-speed cutting capability (up to 60,000mm/min) and precise multi-layer cutting make this machine a highly efficient solution for large-scale textile production, minimizing delays and increasing output.
2. Flexible Configuration
   Customizable dimensions and cutting capabilities allow businesses to tailor the machine to their specific production requirements, ensuring maximum utility.
3. Enhanced Cutting Precision
   With a cutting accuracy of ≤0.1mm, the JK-2225 PRO ensures that every cut is precise, minimizing waste and reducing the need for rework.
4. User-Friendly Operation
   The easy-to-use interface and integration with CAD/CAM software simplify the cutting process, making it easier for operators to set up and control the machine.
5. Cost Efficiency
   The JK-2225 PRO is designed to lower overall production costs by reducing material waste, minimizing downtime, and enhancing cutting accuracy. The machine’s energy-efficient design also helps reduce operating costs.

Common Questions (FAQs)

1. Can the JK-2225 PRO cut multiple types of fabric?
Yes, it can cut a wide range of fabrics, including knitted, woven, and technical textiles.

2. What is the cutting speed of the JK-2225 PRO?
The machine offers a maximum cutting speed of 60,000mm/min, making it suitable for high-volume production.

3. Is the JK-2225 PRO customizable to specific fabric widths and lengths?
Yes, the machine offers customizable working widths, cutting lengths, and table sizes to suit your production needs.

4. How does the cutting system maintain accuracy at high speeds?
The cutting system uses advanced servo motors, precision pneumatic systems, and planetary gears to ensure accurate cuts even at high speeds.

5. How can I maintain the JK-2225 PRO CNC machine?
Regular maintenance includes cleaning the cutting bed, checking the vacuum system, inspecting blades for wear, and lubricating moving parts. Please refer to the maintenance guide for detailed instructions.

Maintenance Guidelines

1. Daily Maintenance
   • Ensure the cutting bed is clean and free from debris.
   • Check the vacuum system for proper function.
2. Blade Maintenance
   • Inspect blades regularly for damage or wear and replace them as necessary.
3. Motor and Pneumatic System
   • Lubricate motors and ensure the pneumatic system is operating efficiently.
4. Software Updates
   • Keep the machine’s CNC software updated to ensure compatibility with new file formats and optimal performance.

The JK-2225 PRO CNC Multi-Layer Cutting Machine from JEKE is a powerful, flexible, and precise solution for large-scale textile cutting. Designed to handle high-speed, multi-layer fabric cutting, it is ideal for industries that require efficient, high-volume production with the highest level of precision. Whether you are involved in garment manufacturing or need to cut complex materials for technical textiles, the JK-2225 PRO offers the performance, customization, and reliability your business needs to stay competitive.
