1. • Product Overview:

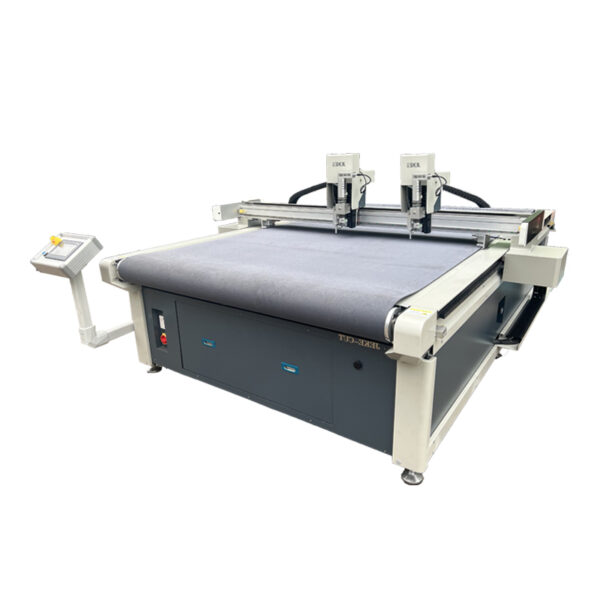

     The JK-1612 Film Cutting Machine is an innovative piece of equipment that significantly reduces labor costs while increasing efficiency in cutting tasks. Featuring a vacuum table, servo motor, and advanced software compatibility, it’s a versatile tool for precise cutting of soft and medium rigidity materials, including films, fabrics, foams, and more.

     The JEKE brand has designed this machine with user-friendliness in mind, ensuring easy installation, intuitive operation, and seamless integration with CAD software. Whether you’re cutting for packaging, labels, or textiles, the JK-1612 can handle all your production needs with exceptional accuracy.

     ---

     Key Features of the JK-1612 Film Cutting Machine:

     1. Scanning Bar-code Offline with U-Disk:
        • The U-disk/Offline function allows for one-click recognition of cutting jobs stored on a USB drive. You simply scan the pre-printed barcode, and the system automatically identifies the cutting job—no need for a computer connection. This feature enhances productivity, especially when dealing with large volumes of stored files.
     2. Compatibility with CAD/CAM Software:
        • The JK-1612 is compatible with popular software such as AutoCAD, Adobe Illustrator, CorelDRAW, and FlexiSign. JEKE leads the industry by creating its own software, allowing for seamless adaptation to the latest versions of CAD/CAM software. This makes the JK-1612 incredibly versatile and future-proof for a wide range of applications.
     3. Fast Registration Marks Detection with CCD Camera:
        • The CCD camera combined with JEKE’s dedicated software enables fast and precise registration mark detection, ensuring that even intricate die-less contours are detected and cut with high accuracy. This feature eliminates human errors and poor-quality printing issues that could otherwise affect the cutting process.
     4. One-click Install Print Driver:
        • The JK-1612 comes with a one-click print driver installation that enables you to send cutting jobs directly from any CAD software. This function works seamlessly with Windows 32/64-bit systems and ensures smooth operation with minimal setup time.
     5. Grating Ruler for Real-Time Cutting Depth Measurement:
        • The Grating Ruler measures the distance between the blade and material surface in real time. The controller adjusts the cutting depth in 0.01mm increments based on the measured distance, ensuring consistent cutting depth across the entire cutting path, regardless of material thickness or surface variations.
     6. Fine Cutter Holder:
        • The Fine Cutter Holder ensures that the blade runs precisely and remains in place, even when cutting thick or sticky materials. This reduces the likelihood of the blade dropping, ensuring consistent cutting performance.

     ---

     Detailed Specifications:

     ITEM	JK-1312	JK-1612	JK-1325
     Non-contour cutting area	1300x1200mm	1520x1200mm	1300x2500mm
     Contour cutting area	1240x1180mm	1490x1180mm	1270x2450mm
     Max. media thickness	1.5mm	1.5mm	2.0mm
     Applicable media	Soft and medium rigidity media	Soft and medium rigidity media	Soft and medium rigidity media
     Method to fix media	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)
     Max. cutting speed	600mm/s	600mm/s	600mm/s
     Max. cutting force	600G/5.8N	600G/5.8N	600G/5.8N
     Cutting force setup	Adjustable in every 1G	Adjustable in every 1G	Adjustable in every 1G
     Cutter blade diameter	60mm	60mm	60mm
     Cutter blade angles	–	–	–
     Dotted lines cutting	Included	Included	Included
     Drive	AC Servo	AC Servo	AC Servo
     Mechanical resolution	0.0125mm	0.0125mm	0.0125mm
     Compatible OS	Win 10/8/7/XP	Win 10/8/7/XP	Win 10/8/7
     Memory buffer	2MB	2MB	2MB
     Software	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro
     LCD language	English/Chinese	English/Chinese	English/Chinese
     File format	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232
     Port in standard	CCD Camera	CCD Camera	CCD Camera
     Reg marks detection	Yes	Yes	Yes
     Power input	220V/50-60Hz	220V/50-60Hz	220V/50-60Hz
     Power consumption	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw
     Working tools	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included
     Media bracket	Yes	Yes	Yes
     Machine Dimension (L-W)	1700x1800mm	2100x1800mm	1700x2800mm
     Packing size (L-W-H)	920x1850x1220mm	2150x1920x1220mm	1920x3200x1220mm
     Weight	260kg	340kg	680kg

     ---

     Advantages of the JK-1612 Film Cutting Machine:

     1. Labor Cost Savings: The U-disk/Offline function eliminates the need for a computer connection, saving time and reducing human error. This makes the cutting process more efficient and less dependent on manual labor.
     2. High Precision Cutting: With its advanced servo motor and real-time cutting depth adjustments, the JK-1612 ensures highly precise cuts across a variety of materials, making it ideal for industries where accuracy is crucial.
     3. Enhanced Productivity: Features like automatic feeding, CCD camera registration mark detection, and one-click software installation streamline the cutting process, reducing production time and increasing output.
     4. Easy Integration with CAD Software: The JK-1612 is compatible with leading CAD software, ensuring seamless integration into existing production workflows. Whether you’re using AutoCAD, CorelDRAW, or Adobe Illustrator, this machine can handle it.
     5. Versatile Material Compatibility: The vacuum table holds a wide range of materials securely, including films, plastics, textiles, and soft to medium rigidity substrates.

     ---

     Frequently Asked Questions (FAQ):

     1. What materials can the JK-1612 cut?
        • The JK-1612 is capable of cutting soft and medium rigidity materials, including films, fabrics, foams, and plastics.
     2. How does the scanning bar-code offline feature work?
        • The machine scans a pre-printed barcode on a U-disk to automatically recognize and select the correct cutting job. This eliminates the need for a computer connection and streamlines the cutting process.
     3. What is the maximum cutting speed of the JK-1612?
        • The JK-1612 has a maximum cutting speed of 600mm/s, which ensures fast and efficient cutting, even for large production volumes.
